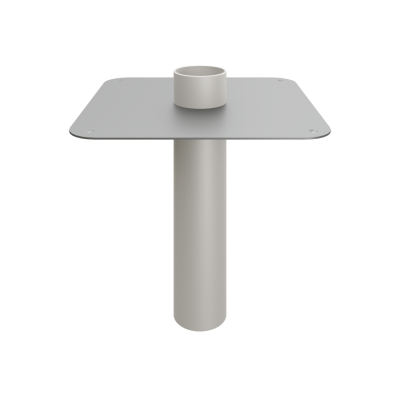

Emergency overflow system with solid adhesive sheet
- Guaranteed waterproof
- Standard with foil
- Different plastics
Emergency overflow system
Specifications
| Outer diameter: | 40 – 200 mm ø (PVC and PP) |
| 50 – 200 mm ø (PE) | |
| Inner diameter: | 36,6 – 190,2 mm ø (PP) |
| 36,2 – 196,4 mm ø (PVC) | |
| 44 PE – 190,2 mm ø (PE) | Dimensions adhesive cladding sheet: | 200 – 400 mm |
| Length spout: | 300 mm (nder adhesive sheet) |
| Length spout: | 40 mm (above adhesive sheet) |
| Liters per second drainage: | 0.90 - 13.00 liters per second |
